BL-104A Dental X-ray

Description:

X-ray generator:DC High Frequency

Tube Voltage:60kV(Fixed)

Tube Current: 2mA(Fixed)

X-ray tube focal size:0.7mm

Time setting range:0.01-1.6 second(0.01 sec step)

Type: Stationary anode X-ray tube

Toshiba X-ray tube focal size:0.7mm

Target angle:16℃

Total filtration:1.5mm Al

(Inherent filtration:0.8mmAl,Fixed added filtration:0.8mmAl)

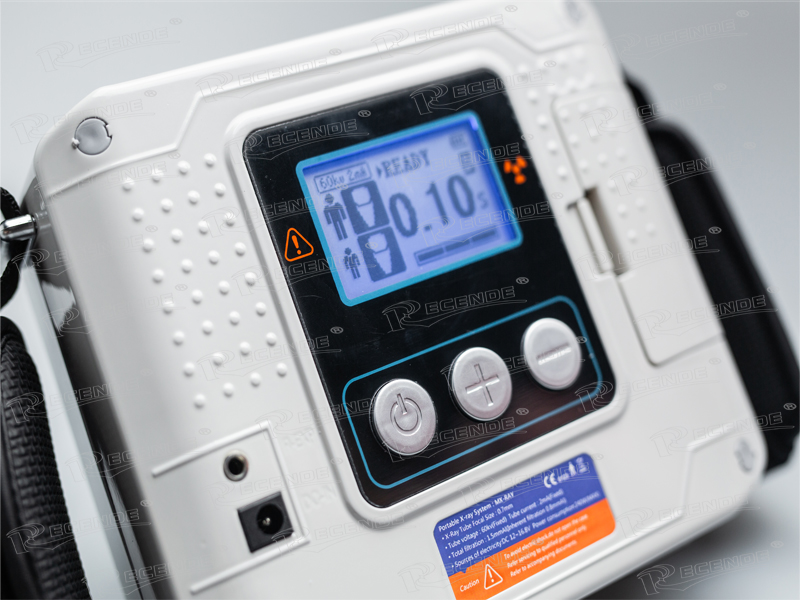

Display method: LCD Display

Frequency:30kHz

Rated Power:120VA

Focal Spot To Skin Distance:110mm

Charger Input Voltage: AC100V～240V±10%

Input Voltage: DC16.8V

N.Weight:1.8KG

G.Weight:5Kgs

Supply Frequency: 50/60Hz±1%

Radiation Leakage: <0.025mGy/h

Package Size:18*15*15cm

Korea Battery:DC16.8V

High voltage generating circuit: High frequency inverter method

X-ray control method: Controlled by the micro processor

Characteristic :

1.Light weight for potinum hand-held use.

2.The least radiation exposure but high quality X-ray.

3.Micro-computer and specialized circuit that monitors and precisely regulates the exposure technique factors(kV,mA and exposure time).

4.Simple up and down arrows adjust exposure setting by 0.01 second(0.01-1.6sec).

5.Pres-programmed exposure time makes the operation fast and easy.

6.Uniquely designed internal lead shield protects the operator and the patient from dispersed radiation.

7.There chargeable battery can shoot 100 times per charge. It is more stable than the external power source in producing X-rays
